Ürün ayrıntıları:
|
| Nem kontrolü: | %20 BN~%98 BN, Seçenek | Sıcaklık dalgalanması: | ±1.0℃ |
|---|---|---|---|
| Özelleştirilmiş Destek: | OEM | kondansatör: | Su soğutmalı yoğuşturucu madde |
| Cooling Rate/min: | 1 Degree | Sıcaklık Tekdüzeliği: | ±2.0℃ |
| Güç: | 220V , 50Hz | anahtar kelime: | Çevre Odaları |

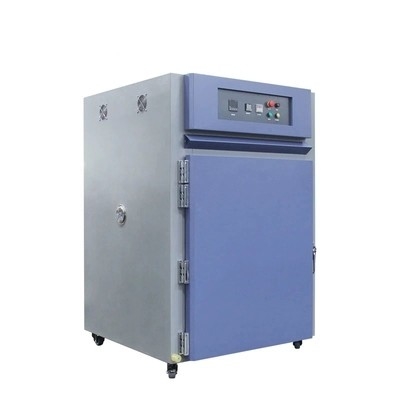

Ambient Climate Test Chamber With Temperature Range Of -70~150℃
Box structure:
1. The box body is processed and formed by CNC machine tools, with beautiful appearance and non-reaction handle, which is easy to operate.
2. The inner tank of the box is made of imported high-grade stainless steel (SUS304) mirror panel, and the outer tank of the box is sprayed with
A3 steel plate, which increases the appearance texture and cleanliness.
3. The water replenishment tank is placed in the lower right part of the control box, and has automatic water shortage protection, which is more convenient for the operator to replenish the water source.
4. The large observation window is equipped with lights to keep the inside of the box bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time.
5. The humidification system pipeline is separated from the control circuit board, which can avoid failure due to water leakage in the humidification pipeline and improve safety.
Performance parameters:
| Temperature Range | A:-0~150℃ B:-20~150℃ C:-40~150℃ D:-70~150℃ |
| Humidity Range | 20%RH-98%RH (details see temperature humidity control diagram). |
| Temperature Fluctuation | ±0.5℃ |
| Humidity Fluctuation | ±2%RH |
| Temperature Deviation | ≤2.0℃ |
| Humidity Deviation | A)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH. |
| Temperature Uniformity | ≤±2.0℃ |
| Humidity Uniformity | +2,-3%RH |
| Heating Rate | Approx 3℃/mins,average non-linear ,no load |
| Cooling Rate | Approx 1℃/ mins,average non-linear ,no load |
| Temperature Overshoot | ≤±2℃ |
| Internal Material | 1.2mm thick SUS#304 high &low temperature resistance stainless steel. |
| External Material | Adopt flame retardant high strength PU Polyurethane foam insulation material. |
| Control Method | Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning. |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
